Concept Acoustic Office Pod
Dispatched within 10 working days
- 5 Year Manufacture Guarantee
- Finished in Silver, White or Black framework
- Strong Aluminium frame with powder coated paintwork
- Acoustic Surface on both sides of the Upholstered Office Screen.
- Covered with a 24mm fire retardant sound soak foam both sides.
- Manufactured with an 18mm solid core
- Screen pressed under immense pressure to make it robust
- Includes digital lock for door
- Available in a choice of 12 fabric colours
- Pod measures 2.3m H x 2m W x 1.4m D

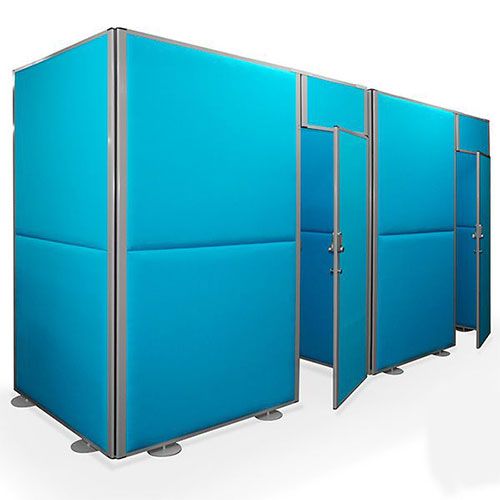

The images used is showcasing the double pod.
The Concept Acoustic Office Pod has been designed to provide a super acoustic room solution that's both low cost and effective. The Concept Office Pod is made using our Concept office screens, which are made of 2 acoustic panels which can be upholstered in 2 different fabric colours from our range of 12 colourways.
The acoustic pod is perfect for both a breakout space or collaborative working and holding important internal and client meetings, with a digital door lock included to give privacy when required. The acoustic ability has been added with the use of acoustic foam, which has been added on both sides of the screens.
The acoustic office pods are upholstered both sides in our Universe range, which has been tested in accordance with BS 476 Part 7 Class 1, BS5852 0 & 1 for fire retardancy.
What are the benefits of the Concept Acoustic Office Pod?
- Uses acoustic foam
- Made in the UK
- Select up to 2 fabrics per screens
- Ideal meeting/training room
- 12 bright fabrics to select from
All acoustic office partitions and office pods are made and manufactured by Rap at our premises in Peterborough, Cambridgeshire
PLEASE NOTE: These colour samples are for guidance and representation only. Due to limitations with colour screen viewing, accuracy cannot be guaranteed. Fabric samples are available on request. Please call our customer service team on 01733 394941.
Product specifications for the Concept Acoustic Office Screen range.
Frame Measurements
Frame thickness - 28mm
Frame width - (side bars) - 50mm / (Top & bottom bar) - 22mm
Acoustic screen thickness (Core, foam & fabric) - 42mm
Foot slots in the frame are 290.5mm in from each end (Varied on screens 800mm W & smaller)
Materials
Frame - Powder coated aluminium
Stability feet - Steel
*stability feet are trip and wheelchair friendly
Feet raise the screen by 25mm and protrude 230mm from either side of the screen
Castor wheels (upgrade) Raise screen by 77mm & protrude 255mm each side of screen
Internal - 18mm solid core
Foam - 12mm fire retardant acoustic foam
Linking strips - Flexible PVC
Fire Safety Elements
Foam
12mm Combustion Modified Foam BS 5852-2: using ignition Source 5 Crib
Chipboard
Surface spread of Flames Class 2 tested to BS479-7
MDF
Surface spread of Flames Class 2 tested to BS479-7
Plastic Components
Manufactured using non-flammable, self-extinguishing plastic.
Aluminium
Extrusions has a melting of 660°C and is not considered to be a fire hazard.
Steel
Components are not considered to be a fire hazard.
Fabric Options
Woven Fabric
Woven Collection has been tested to BS 5867-2: 2008 & BS 7176 2007
Universe Fabric
Universe Collection has been tested to BS 5867-2: 2008 Type B
Can I choose more than 1 colour per screen?
Yes you can! We have designed the Concept 2 and 3 part for this reason, so you’re able to choose more than one fabric colour per screen.
Mix and match colours as you create a unique acoustic office screen layout.
Can I add print?
On the full acoustic Concept Partition Screens it’s not possible to add any print, but on the concept screen with the acrylic panel it’s possible.
Add custom print to the acrylic panel in the form of any image, logo, or text.
How long will my screens take?
As the Concept Acoustic Screens are made to order, we require 10 working days to manufacturer and dispatch. We will make the screen to your desired size and colour selections.
Do I need to purchase anything additional to use the Concept Screens?
No, everything you need to get started is included. You’ll receive a set of trip and wheelchair friendly stability feet and a flexible linking strip.
Are the Concept Office Screens portable?
As standard, the Concept screens are supplied with stability feet which aren't portable. Upgrades to castor wheels are available to transform the static partition into a portable solution.
