Concept 3-Part Glazed Office Partition Screens
Dispatched within 10 working days
- Includes 2 Acoustic Panels within the office partition & an acrylic panel.
- Includes set of Stabilising Feet & 2 Way Link Strip
- Screen height of up to 2.4m
- Finished in Silver, Black or White Paintwork
- Acrylic Panel is available with a clear or frosted finish
- Manufactured with an 18mm solid core.
- Concept Office Screens have 12mm acoustic foam either side
About the Concept 3-Part Glazed Office Partition Screens
The Concept acrylic office screens are a unique and stylish solution for customising open environments. These screens adopt the Concept screen design and then incorporate an acrylic panel, which is ideal for including branding or other content. These partitions screens are designed to be practical in these environments as they can help to block out visual and audible distractions.

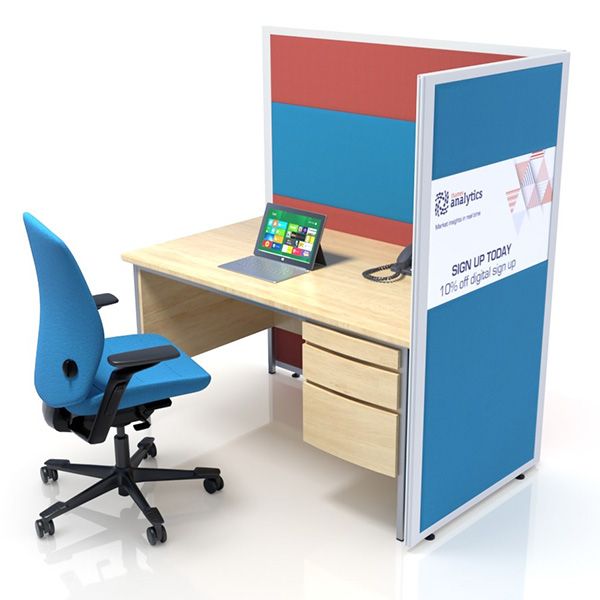

The 3 Part Concept Acoustic Office Partition is made of 3 panels. With a top and bottom acoustic panel, which uses acoustic foam on both sides of the screen to maximise absorption levels. Combined with the middle acrylic panel which can be clear, frosted or printed, if you would like to add your own customisation.
To support more offices in their search for the perfect office divider, the Concept Screens has a wide selection of heights and widths. Suiting all spaces, no matter the size.
Another interesting feature is the linking facility located on each side of the Concept Partition Screen. Each partition is supplied with a linking strip which will connect several panels together, creating a configuration fit for individual requirements.
The Concept acrylic office screens are upholstered both sides in our Universe range, which has been tested in accordance with BS 476 Part 7 Class 1, BS5852 0 & 1 for fire retardancy.
For a full acoustic solution, discover the 3-panel 42mm Acoustic Screens
What are the benefits of the Concept 3 Panel Acoustic Partiton?
- Uses acoustic foam
- Acrylic and acoustic panels combined
- Screen height of up to 2.4m
- Made in the UK
- Assists with noise levels
PLEASE NOTE: These colour samples are for guidance and representation only. Due to limitations with colour screen viewing, accuracy cannot be guaranteed. Fabric samples are available on request. Please call our customer service team on 01733 394941.
All acoustic office dividers and office partitions are made in the UK, by Rap Industries.
Product specifications for the Concept Acoustic & Glazed Office Screen range.
Frame Measurements
Frame thickness - 28mm
Frame width - (side bars) - 50mm / (Top & bottom bar) - 22mm
Acoustic screen thickness (Core, foam & fabric) - 42mm
Foot slots in the frame are 290.5mm in from each end (Varied on screens 800mm W & smaller)
Materials
Frame - Powder coated aluminium
Stability feet - Steel
*stability feet are trip and wheelchair friendly
Feet raise the screen by 25mm and protrude 230mm from either side of the screen
Castor wheels (upgrade) Raise screen by 77mm & protrude 255mm each side of screen
Internal - 18mm solid core
Glazed Section - Clear/frosted/printed 3mm acrylic
Foam - 12mm fire retardant acoustic foam
Linking strips - Flexible PVC
Fire Safety Elements
Foam
12mm Combustion Modified Foam BS 5852-2: using ignition Source 5 Crib
Chipboard
Surface spread of Flames Class 2 tested to BS479-7
MDF
Surface spread of Flames Class 2 tested to BS479-7
Plastic Components
Manufactured using non-flammable, self-extinguishing plastic.
Aluminium
Extrusions has a melting of 660°C and is not considered to be a fire hazard.
Steel
Components are not considered to be a fire hazard.
Fabric Options
Woven Fabric
Woven Collection has been tested to BS 5867-2: 2008 & BS 7176 2007
Universe Fabric
Universe Collection has been tested to BS 5867-2: 2008 Type B
Can I choose more than 1 colour per screen?
Yes you can! We have designed the Concept 2 and 3 part for this reason, so you’re able to choose more than one fabric colour per screen.
Mix and match colours as you create a unique acoustic office screen layout.
Can I add print?
On the full acoustic Concept Partition Screens it’s not possible to add any print, but on the concept screen with the acrylic panel it’s possible.
Add custom print to the acrylic panel in the form of any image, logo, or text.
How long will my screens take?
As the Concept Acoustic Screens are made to order, we require 10 working days to manufacturer and dispatch. We will make the screen to your desired size and colour selections.
Do I need to purchase anything additional to use the Concept Screens?
No, everything you need to get started is included. You’ll receive a set of trip and wheelchair friendly stability feet and a flexible linking strip.
Are the Concept Office Screens portable?
As standard, the Concept screens are supplied with stability feet which aren't portable. Upgrades to castor wheels are available to transform the static partition into a portable solution.
