Concept Acoustic Work Pod
Dispatched within 10 working days
- Pod size - 2000mm H x 3200mm W x 1600mm D
- Made with 3 part Concept Acoustic Screens
- Choose from 12 different fabric options
- Supplied with round bases and button feet
- Ues a strong aluminium frame available in black, white or silver powder coated paintwork
- Includes an internal solid core and 12mm fire retardant foam on both sides.
- Quick and simple to assemble and easy to use.
- We used a 1600mm W x 800mm D desk
- Still not convinced? Come along to our showroom in Peterborough to see for yourself!
- Installation is available upon request

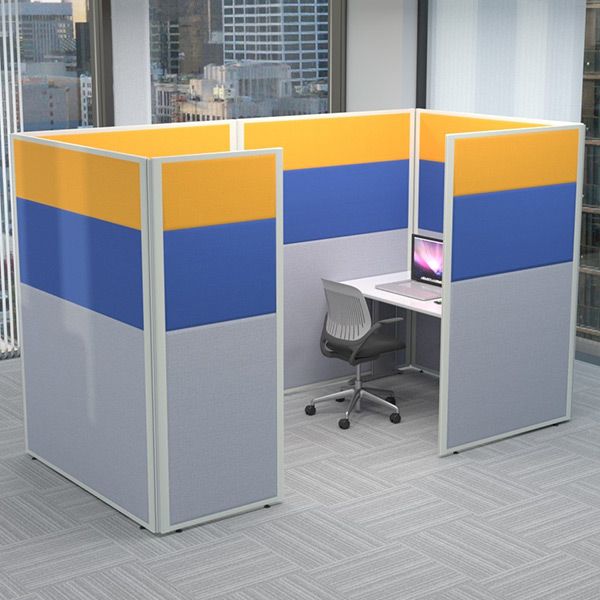

The Concept work office pod has been designed to create a work space suitable for one person, offering a private area within the office to help with productivity. Using the Concept 3 part office screens give the office pod the acoustic ability to reduce office noise and create a quieter working environment.
The Concept 3 Part Office Screens use 12mm layered foam on both sides of the divider, to increase absorption and decrease noise. To achieve the acoustic office pod space, 6 partition screens have been linked. The flexible design allows you to create a different configuration if required.
With a choice of 3 frame colours and 12 fabric colours, our acoustic office pod gives you the opportunity to add your own colours which you can match with your logo colours or current office design. This specific pod size is 2m H x 3.2m W x 1.6m D, leaving space for a desk, chair and a storage system.
What are the benefits of the Concept Work Office Pod?
- Uses acoustic foam
- 3 panel design
- Select up to 3 fabric colours per screen
- Private working areas
- Customisable options available
All acoustic office partitions and office pods are made and manufactured in the UK, by Rap Industries.
Product specifications for the Concept Acoustic Office Screen range.
Frame Measurements
Frame thickness - 28mm
Frame width - (side bars) - 50mm / (Top & bottom bar) - 22mm
Acoustic screen thickness (Core, foam & fabric) - 42mm
Foot slots in the frame are 290.5mm in from each end (Varied on screens 800mm W & smaller)
Materials
Frame - Powder coated aluminium
Stability feet - Steel
*stability feet are trip and wheelchair friendly
Feet raise the screen by 25mm and protrude 230mm from either side of the screen
Castor wheels (upgrade) Raise screen by 77mm & protrude 255mm each side of screen
Internal - 18mm solid core
Foam - 12mm fire retardant acoustic foam
Linking strips - Flexible PVC
Fire Safety Elements
Foam
12mm Combustion Modified Foam BS 5852-2: using ignition Source 5 Crib
Chipboard
Surface spread of Flames Class 2 tested to BS479-7
MDF
Surface spread of Flames Class 2 tested to BS479-7
Plastic Components
Manufactured using non-flammable, self-extinguishing plastic.
Aluminium
Extrusions has a melting of 660°C and is not considered to be a fire hazard.
Steel
Components are not considered to be a fire hazard.
Fabric Options
Woven Fabric
Woven Collection has been tested to BS 5867-2: 2008 & BS 7176 2007
Universe Fabric
Universe Collection has been tested to BS 5867-2: 2008 Type B
Can I choose more than 1 colour per screen?
Yes you can! We have designed the Concept 2 and 3 part for this reason, so you’re able to choose more than one fabric colour per screen.
Mix and match colours as you create a unique acoustic office screen layout.
Can I add print?
On the full acoustic Concept Partition Screens it’s not possible to add any print, but on the concept screen with the acrylic panel it’s possible.
Add custom print to the acrylic panel in the form of any image, logo, or text.
How long will my screens take?
As the Concept Acoustic Screens are made to order, we require 10 working days to manufacturer and dispatch. We will make the screen to your desired size and colour selections.
Do I need to purchase anything additional to use the Concept Screens?
No, everything you need to get started is included. You’ll receive a set of trip and wheelchair friendly stability feet and a flexible linking strip.
Are the Concept Office Screens portable?
As standard, the Concept screens are supplied with stability feet which aren't portable. Upgrades to castor wheels are available to transform the static partition into a portable solution.
