Concept Office Privacy Pod
Dispatched within 10 working days
- Made with acoustic screens and frosted acrylic panels
- Creates a workspace size of 2.4m x 2.4m
- Each side uses 12mm acoustic foam
- Strong Aluminium frame with powder coated paintwork in black, white or silver
- Supplied with 2 round bases and 16 button feet

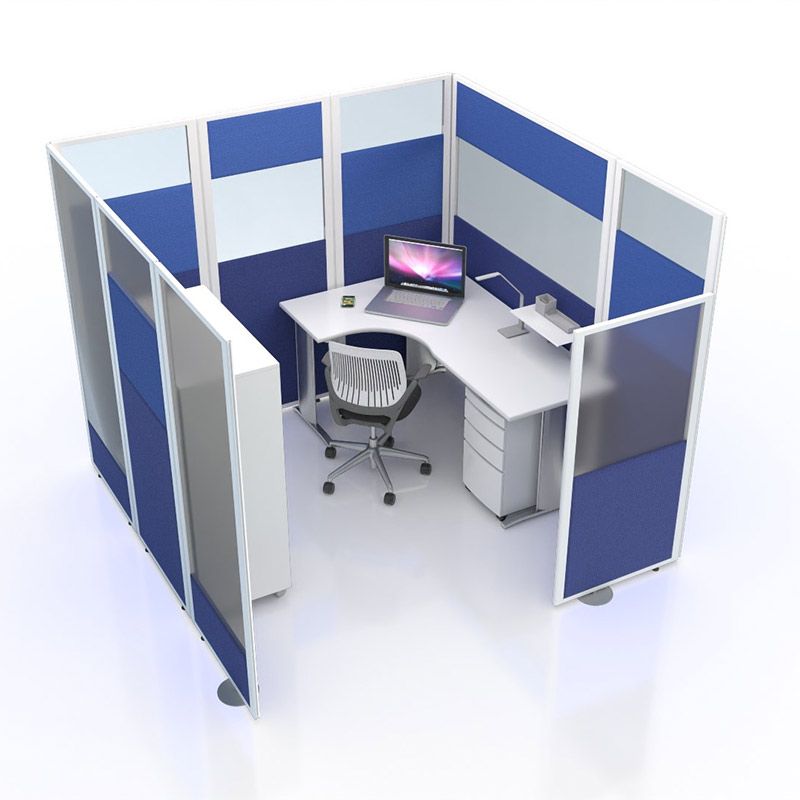

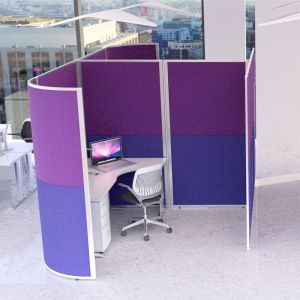

About the Concept Office Privacy Pod
The 2.4m Concept privacy office pod is a stylish way to add a new workspace to your office. The use of acoustic partition screens creates a noise barrier which can help with concentration and general distractions. Combining the acrylic panels with the acoustic invites light into your new working office pod, acting as windows. The simple, square design of the privacy pod is made by connecting individual panels with the supplied linking strip. Due to the flexible connector, the 90 degree angles are achieved with the same linking strip.
As a social distancing work pod the Concept design is ideal. With the combination of wipe clean Perspex and acoustic foam, you’ll be able to effectively create a restricted area to ensure you have a fully functioning office with secure working spaces.
With a choice of 12 colours available, you have the freedom to match the colours to your office colours or logo brief. Select from 1 or 2 colours per panel to bring the office to life and inject some colour into your chosen environment.
The configuration of the partition screens creates an office pod size of 2.4m x 2.4m, allowing you to add all the necessities such as a desk, accessories and the storage you require. The part open side is also a great feature as it creates an open invitation for work colleagues and visitors.
View the individual Concept Acoustic Office Partitions
What are the benefits of the Concept Privacy Pod?
- Suitable for social distancing
- Combines Perspex and acoustic panels
- Wipe clean acrylic panels
- Create a bespoke pod size, designed for you
- Select from a wide choice of fabrics
All office partitions and acoustic office pods are made and manufactured by Rap Industries, in the UK
Product specifications for the Concept Acoustic & Glazed Office Screen range.
Frame Measurements
Frame thickness - 28mm
Frame width - (side bars) - 50mm / (Top & bottom bar) - 22mm
Acoustic screen thickness (Core, foam & fabric) - 42mm
Foot slots in the frame are 290.5mm in from each end (Varied on screens 800mm W & smaller)
Materials
Frame - Powder coated aluminium
Stability feet - Steel
*stability feet are trip and wheelchair friendly
Feet raise the screen by 25mm and protrude 230mm from either side of the screen
Castor wheels (upgrade) Raise screen by 77mm & protrude 255mm each side of screen
Internal - 18mm solid core
Glazed Section - Clear/frosted/printed 3mm acrylic
Foam - 12mm fire retardant acoustic foam
Linking strips - Flexible PVC
Fire Safety Elements
Foam
12mm Combustion Modified Foam BS 5852-2: using ignition Source 5 Crib
Chipboard
Surface spread of Flames Class 2 tested to BS479-7
MDF
Surface spread of Flames Class 2 tested to BS479-7
Plastic Components
Manufactured using non-flammable, self-extinguishing plastic.
Aluminium
Extrusions has a melting of 660°C and is not considered to be a fire hazard.
Steel
Components are not considered to be a fire hazard.
Fabric Options
Woven Fabric
Woven Collection has been tested to BS 5867-2: 2008 & BS 7176 2007
Universe Fabric
Universe Collection has been tested to BS 5867-2: 2008 Type B
Can I choose more than 1 colour per screen?
Yes you can! We have designed the Concept 2 and 3 part for this reason, so you’re able to choose more than one fabric colour per screen.
Mix and match colours as you create a unique acoustic office screen layout.
Can I add print?
On the full acoustic Concept Partition Screens it’s not possible to add any print, but on the concept screen with the acrylic panel it’s possible.
Add custom print to the acrylic panel in the form of any image, logo, or text.
How long will my screens take?
As the Concept Acoustic Screens are made to order, we require 10 working days to manufacturer and dispatch. We will make the screen to your desired size and colour selections.
Do I need to purchase anything additional to use the Concept Screens?
No, everything you need to get started is included. You’ll receive a set of trip and wheelchair friendly stability feet and a flexible linking strip.
Are the Concept Office Screens portable?
As standard, the Concept screens are supplied with stability feet which aren't portable. Upgrades to castor wheels are available to transform the static partition into a portable solution.
