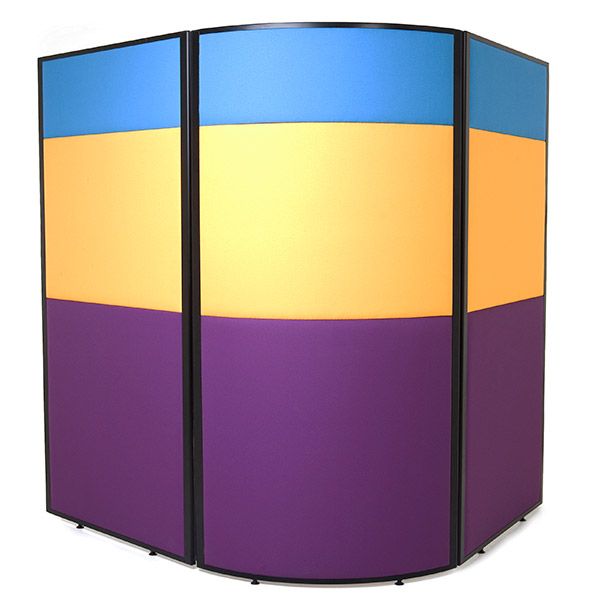

The Concept 3-panel Curved Acoustic Office Screens have the same amazing benefits of the straight Concept panel, except we’ve added a curve to spruce up the design and bring more design possibilities.
A curved Partition Screen can be used as a corner or connecting screen to bring a run of office dividers together. The linking facility located on each side of the Concept screen allows the supplied linking strip to securely connect a series of partitions together.
As well as the 3 part design which accepts up to 3 fabric colours, the Concept partition has more to offer than the visual aspect. Each of the 3 sections uses acoustic foam, on both side of the screen. Acoustic foam helps with noise absorption in a busy workplace and can reduce daily distractions.
White, black or silver options are available for the frame colour, making the Concept screen a truly bespoke product. Stability feet are supplied to match the partition screen frame colour and offer a trip and wheel chair friendly surface.
What are the benefits of the Concept Acoustic 3 Panel Screen?
All acoustic office dividers and office partitions are made in the UK, by Rap Industries.
Product specifications for the Concept Acoustic Office Screen range.
Frame Measurements
Frame thickness - 28mm
Frame width - (side bars) - 50mm / (Top & bottom bar) - 22mm
Acoustic screen thickness (Core, foam & fabric) - 42mm
Foot slots in the frame are 290.5mm in from each end (Varied on screens 800mm W & smaller)
Materials
Frame - Powder coated aluminium
Stability feet - Steel
*stability feet are trip and wheelchair friendly
Feet raise the screen by 25mm and protrude 230mm from either side of the screen
Castor wheels (upgrade) Raise screen by 77mm & protrude 255mm each side of screen
Internal - 18mm solid core
Foam - 12mm fire retardant acoustic foam
Linking strips - Flexible PVC
Fire Safety Elements
Foam
12mm Combustion Modified Foam BS 5852-2: using ignition Source 5 Crib
Chipboard
Surface spread of Flames Class 2 tested to BS479-7
MDF
Surface spread of Flames Class 2 tested to BS479-7
Plastic Components
Manufactured using non-flammable, self-extinguishing plastic.
Aluminium
Extrusions has a melting of 660°C and is not considered to be a fire hazard.
Steel
Components are not considered to be a fire hazard.
Fabric Options
Woven Fabric
Woven Collection has been tested to BS 5867-2: 2008 & BS 7176 2007
Universe Fabric
Universe Collection has been tested to BS 5867-2: 2008 Type B
