Morton Vision Top Screens
Dispatched within 10 working days
- 5 Year Manufacture Guarantee
- Free of charge set of Stabilising Feet & 2 Way Link Strip
- Finished in White, Silver or Black Paintwork with Frosted Acrylic.
- Clear acrylic as standard
- Frosted acrylic available on request
- Acoustic Surface on both sides of the Upholstered Office Screen.
- Perspex is 480mm down from the top of the screen.
- The Glazed Vision Screens is finished in high quality Perspex.
- Covered with a 12mm fire retardant foam both sides.
- Manufactured with an 18mm solid core.
- Screen pressed under immense pressure to make it robust.
- Bespoke Screen sizes available.
The Morton Top Glazed Office Screens provide a stylish and professional way of dividing open plan environments such as offices and classrooms. These have been designed to create privacy in busy environments where visual and audible distractions can become a common issue. As well as the screen itself, the Morton screens are equipped with acoustic foam to help soak up ambient background noise.
The base of the Morton Office Screen uses acoustic foam, used on both side of the screen for maximum noise absorption. A large portion of the height is occupied with fabric, with a wide selection of fabric colours, the possibility to customise is available.
Located at the top of the screen is the acrylic window. Clear or frosted acrylic options are available, each finish suiting a different purpose. A frosted finish, which brings a slightly opaque look is ideal if privacy is part of your office design.
In addition to choosing the size, fabric colour and acrylic finish, the framework has a variety of colours. Black, white or silver partition edging is available, and is supplied with matching stability feet.
What are the benefits of the Morton Vision Top Office Partitions?
- Fully customisable
- Linkable office partitions design
- Clear or frosted acrylic
- Freestanding office screens
- Trip & wheel chair friendly stability feet
All acoustic office partitions and office dividers are made in the UK, by Rap Industries.
The Morton Office Partitions are upholstered both sides in our Woven Fabric range, which has a result of 40,000 rubs on the Martindale cycle test. The Woven fabric has also been tested in accordance with BS EN 1021 - 1 for flame retardancy.
PLEASE NOTE: These colour samples are for guidance and representation only. Due to limitations with colour screen viewing, accuracy cannot be guaranteed. Fabric samples are available on request. Please call our customer service team on 01733 394941.
Product specifications for the Morton Vision Office Screen range.
Frame Measurements
Frame thickness - 28mm
Frame width - (side bars) - 50mm / (Top & bottom bar) - 22mm
Acoustic screen thickness (Core, foam & fabric) - 42mm
Foot slots in the frame are 290.5mm in from each end (Varied on screens 800mm W & smaller)
Materials
Frame - Powder coated aluminium
Stability feet - Steel
*stability feet are trip and wheelchair friendly
Feet raise the screen by 25mm and protrude 230mm from either side of the screen
Acrylic - 3mm clear and frosted acrylic
White gloss laminate - HPL (high pressure laminate)
Internal - 18mm solid core
Foam - 12mm fire retardant acoustic foam
Linking strips - Flexible PVC
Fire Safety Elements
Foam
12mm Combustion Modified Foam BS 5852-2: using ignition Source 5 Crib
Chipboard
Surface spread of Flames Class 2 tested to BS479-7
MDF
Surface spread of Flames Class 2 tested to BS479-7
Plastic Components
Manufactured using non-flammable, self-extinguishing plastic.
Aluminium
Extrusions has a melting of 660°C and is not considered to be a fire hazard.
Steel
Components are not considered to be a fire hazard.
Acrylic
Tested to BS 476 Part 7 with a Class 3 classification
Laminate
Tested to standard UNE EN 13501-1:07+A1:2010
Fabric
Woven Fabric - Morton Standard
Woven Collection has been tested to BS 5867-2: 2008 & BS 7176 2007
Universe Fabric - Morton+
Universe Collection has been tested to BS 5867-2: 2008 Type B
Are the Morton Visions still acoustic?
The Morton Vision version with the acoustic base, has some level of acoustic property. But due to addition of acrylic, the partition isn’t as acoustically effective as the Morton Acoustic Office Screen.
The Morton Vision with the laminate bases offer no acoustic properties due to the hard material of the acrylic and laminate.
Can I add a logo to the acrylic section?

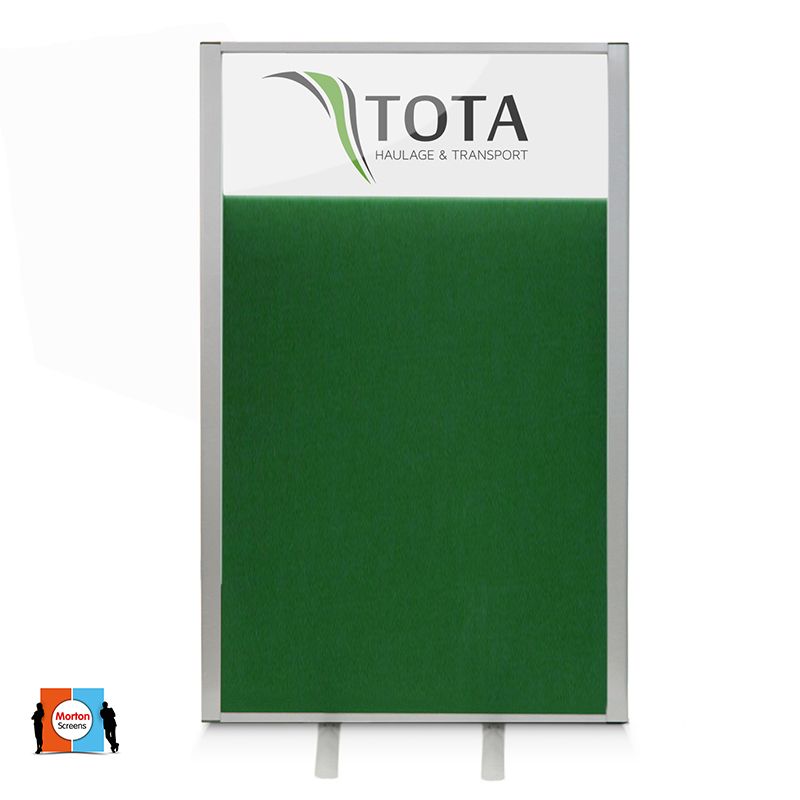

Yes, on the full, half and top vision it’s possible to add a logo, or custom print of choice on to the acrylic section of the divider.
Can I use different Morton Screens together?
It’s possible to link and use any of the Morton Vision and Standard Acoustic Screens together. All screens are supplied with a flexible linking strip so your configuration can be created from arrival.
Is it possible to return screening?
As we make each screen to order based on the selected size, fabric and frame colour, we’re unable to accept returns. Our full T&C’s can be found here.
