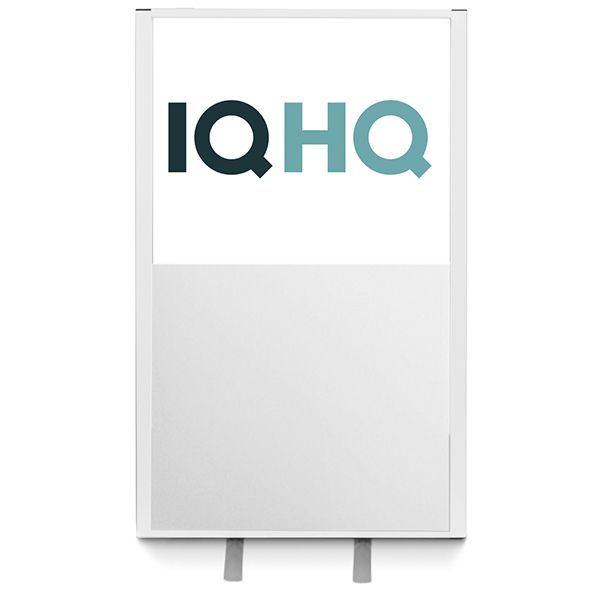

Morton Half Vision with Laminate Partition
Dispatched within 10 working days
- 5 Year Manufacture Guarantee
- Acrylic & laminate office partition
- Includes set of Stabilising Feet & 2 Way Link Strip
- Clear acrylic as standard
- Frosted acrylic available on request
- Finished in White, Silver or Black Paintwork.
- Acrylic is Half Screen Height - e.g.1525mm H screen= 750mm.
- Bottom half finished in HPL laminate
- The Glazed Vision Screens is finished in high quality Perspex.
- Manufactured with an 18mm solid core.
- Screen pressed under immense pressure to make it robust.
- Bespoke Screen sizes available.
The Morton Half Vision with Laminate Partition has been designed to balance the open plan office design whilst providing some privacy. The top half of the screen uses acrylic, which can be selected in either a clear or frosted finish. The clear Perspex selection is ideal when you are looking to divide an area but still wish to have visibility. Whereas the frosted acrylic allows light to shine through and provides privacy.
The bottom section of the half glazed office screen has a REACH compliant laminate. The laminate area shows a white gloss finish, which also accepts white board pens. Both the acrylic and laminate panel are suitable when it comes to social distancing, as both surfaces are easy to clean and sanitise.
A half glazed office screen can be used to divide open areas, meeting rooms and can also be an option when looking for a desktop divider. The Morton range uses a strong aluminium frame with high quality powder coating, available in black, white or silver.
Social distancing is a factor now contributing to how your office will be laid out. Incorporating acrylic and laminate dividers will ensure you can safely divide workstations whilst being in control of your office design.
What are the benefits of glazed office screens as a social distancing measure?
- Frosted Perspex or clear acrylic finishes
- A freestanding acrylic office divider
- Easy to wipe clean and sanitise
- Suitable for creating social distanced areas
- Acts a Perspex safety barrier
- Strong framework, with a choice of colours
- Reach compliant, white gloss laminate
All social distancing acrylic office partitions are manufactured by Rap at our premises in Peterborough, Cambridgeshire
Product specifications for the Morton Vision Office Screen range.
Frame Measurements
Frame thickness - 28mm
Frame width - (side bars) - 50mm / (Top & bottom bar) - 22mm
Acoustic screen thickness (Core, foam & fabric) - 42mm
Foot slots in the frame are 290.5mm in from each end (Varied on screens 800mm W & smaller)
Materials
Frame - Powder coated aluminium
Stability feet - Steel
*stability feet are trip and wheelchair friendly
Feet raise the screen by 25mm and protrude 230mm from either side of the screen
Acrylic - 3mm clear and frosted acrylic
White gloss laminate - HPL (high pressure laminate)
Internal - 18mm solid core
Foam - 12mm fire retardant acoustic foam
Linking strips - Flexible PVC
Fire Safety Elements
Foam
12mm Combustion Modified Foam BS 5852-2: using ignition Source 5 Crib
Chipboard
Surface spread of Flames Class 2 tested to BS479-7
MDF
Surface spread of Flames Class 2 tested to BS479-7
Plastic Components
Manufactured using non-flammable, self-extinguishing plastic.
Aluminium
Extrusions has a melting of 660°C and is not considered to be a fire hazard.
Steel
Components are not considered to be a fire hazard.
Acrylic
Tested to BS 476 Part 7 with a Class 3 classification
Laminate
Tested to standard UNE EN 13501-1:07+A1:2010
Fabric
Woven Fabric - Morton Standard
Woven Collection has been tested to BS 5867-2: 2008 & BS 7176 2007
Universe Fabric - Morton+
Universe Collection has been tested to BS 5867-2: 2008 Type B
Are the Morton Visions still acoustic?
The Morton Vision version with the acoustic base, has some level of acoustic property. But due to addition of acrylic, the partition isn’t as acoustically effective as the Morton Acoustic Office Screen.
The Morton Vision with the laminate bases offer no acoustic properties due to the hard material of the acrylic and laminate.
Can I add a logo to the acrylic section?
Yes, on the full, half and top vision it’s possible to add a logo, or custom print of choice on to the acrylic section of the divider.
Can I use different Morton Screens together?
It’s possible to link and use any of the Morton Vision and Standard Acoustic Screens together. All screens are supplied with a flexible linking strip so your configuration can be created from arrival.
Is it possible to return screening?
As we make each screen to order based on the selected size, fabric and frame colour, we’re unable to accept returns. Our full T&C’s can be found here.
